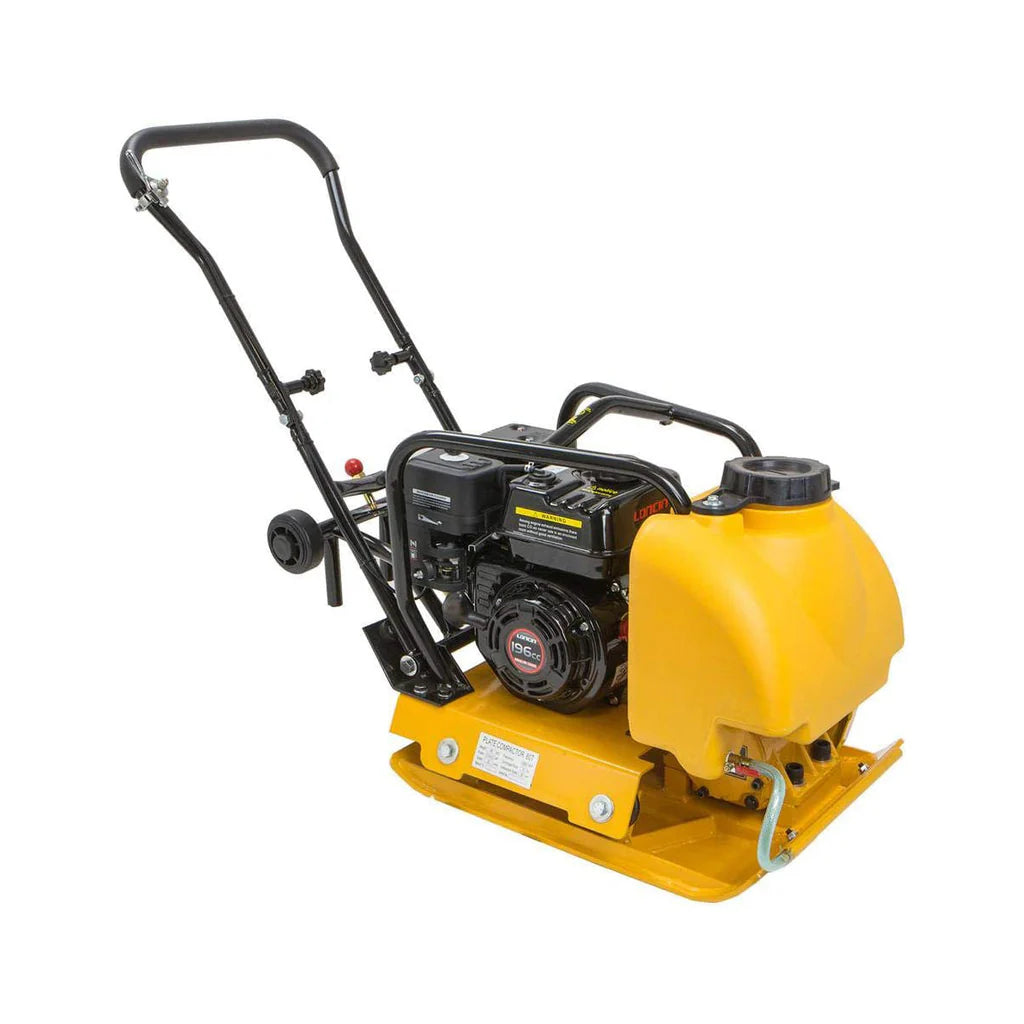

Plate Compactor Water Tank Gas

Model: 61006

Gas Plate Compactor Water Tank Gas

Description

  25" x 18" Plate 196cc 6.5 HP

Product Overview

Features:

• The compactor features an adjustable control throttle, cushioned handlebars, engine-oil drain tube, and attached wheel kit for easy transportation
• Can be used in multiple jobs such as working on walkways, patios, paver installations or asphalting projects
• The process of compacting aggregate material provides for a solid and leveled foundation which keeps the road resistant to erosion for years to come
• Ideally used for finishing asphalt, sand, and sloped surfaces while working within narrow confined areas
• This model is equipped with a water tank and sprinkler system for an easy finishing job
• Built-in foldable wheel kit for central lifting and easy transportation

Specifications:

• Engine Type: Forced Air -Cooled, 4 -Stroke Gasoline Engine
• Max Power: 4.8KW (3600RPM)
• Displacement: 196 MI
• Power HP: 6.5
• RPM: 3600
• Fuel Tank: Gasoline
• Fuel Tank Capacity: 1 Gallon
• Start Type: Recoil
• Effective Base Area: 25" x 18"
• Vibration Frequency: 6500
• Climb Ability: 0-20 Degrees
• Impact Force: 4000lb
• Compaction area maximum: 3229 ft./hour
• Compaction maximum: 790 in. D
• Compaction Depth Max: 790"
• Compactor depth (soil) 12 in. D
• Forward Speed (Soil) (M/ Min): Up To 30
• Grade Ability: 30%
• Compliant: CARB and EPA

Package Content:

• Compactor Plate
• Manual
